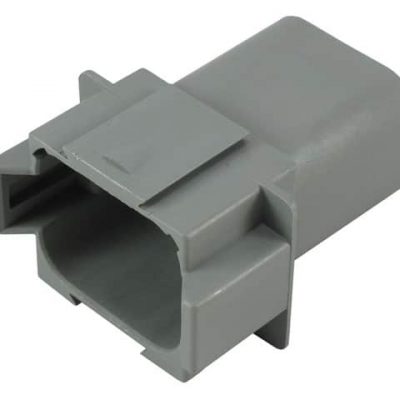

DT04-08PA-C015

• Connector & Housing Type : Housing for Male Terminals
• Mating Pin Diameter : 1.59 mm [ .063 in ]
• Number of Positions : 8
• Centerline (Pitch) : 9.12 mm [ .359 in
• Connector shape: Rectangular
• Mixed & Hybrid Connector :No
• Connector & Housing Type :Housing for Male Terminals
• Sealable :Yes
• Primary Locking Feature :Integrated in Housing
• Connector System :Wire-to-Wire
• Connector & Contact Terminates To :Wire & Cabl
• Connector Seal code: E Seal
• Blank Cavity Position :0
• Number of Rows :2
• Operating Voltage (VDC):250
• Operating Voltage (VAC):250
• Nominal Voltage Architecture (V):12 | 24 | 48
• Cable Exit Angle (°):180
• Primary Product Color :Gray
• Connector & Keying Code :A
• Contact Type :Receptacle
• Contact Size :Size 16
• Mating Pin Diameter :1.57 mm [ .062 in ]
• Contact Current Rating (Max) (A):13
• Mating Alignment :With
• Mating Alignment Type :Keyed
• Terminal Position Assurance :Yes
• Strain Relief :Add By Accessory
• Connector Mounting Type :Cable Mount (Free-Hanging)

DT04-08PA-C015
