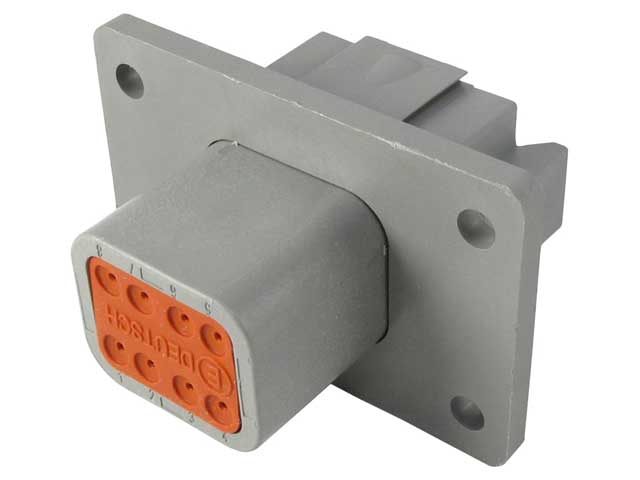

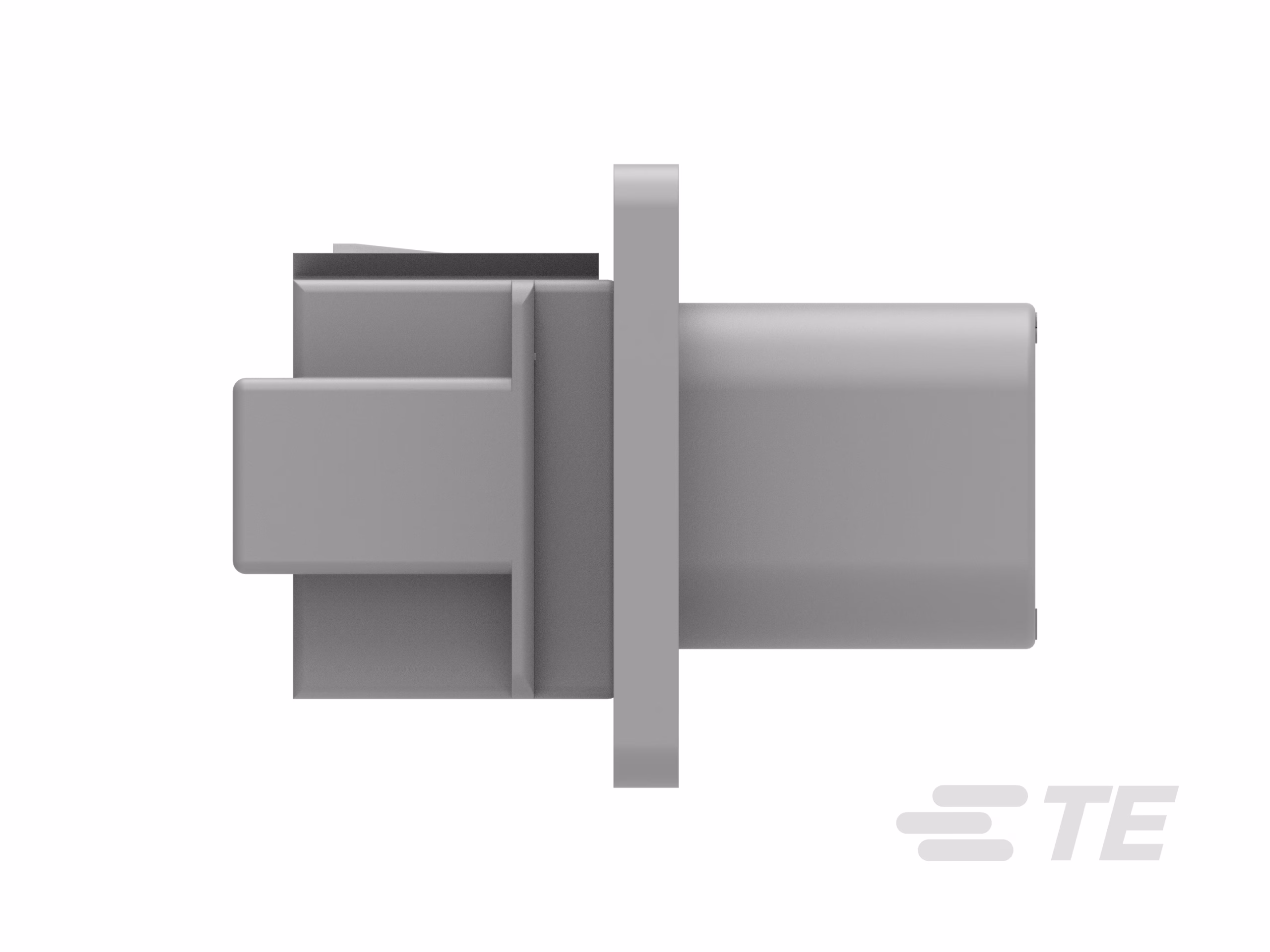

DT04-08PA-CL03 - Receptacle DT serie
Housing for Male Terminals, Wire-to-Wire, 8 Position, .359 in [9.12 mm] Centerline, Sealable, Gray, Wire & Cable, Power & Signal, DEUTSCH DT
Mecs nummer: DT04-8PA-CL03
HS-code: 85472000
Land van oorsprong: US - United States of America
DT04-08PA-CL03
- Connector Shape :Rectangular
- Mixed & Hybrid Connector :No
- Connector & Housing Type :Housing for Male Terminals
- Sealable :Yes
- Primary Locking Feature :Integrated in Housing
- Connector System :Wire-to-Wire
- Connector & Contact Terminates To :Wire & Cable
Configuration Features
- Connector Seal Code :E Seal
- Connector Modification :Welded Flange
- Blank Cavity Position :0
- Number of Positions :8
- Number of Rows :2
Body Features
- Cable Exit Angle (°):180
- Primary Product Color :Gray
- Connector & Keying Code :A
Contact Features
- Contact Type :Receptacle
- Contact Size :Size 16
- Mating Pin Diameter :1.57 mm [ .062 in ]
- Contact Current Rating (Max) (A):13
Housing Features
- Housing Material :PA GF
- Centerline (Pitch) :9.09 mm [ .358 in ]
Dimensions
- Connector Height :35.51 mm [ 1.398 in ]
- Product Length :45.67 mm [ 1.798 in ]
- Product Width :54.99 mm [ 2.165 in ]
- Compatible Insulation Diameter Range :1.35 – 3.05 mm [ .053 – .12 in ]
- Row-to-Row Spacing :4.45 mm [ .175 in ]
Usage Conditions
- Operating Temperature Range :-55 – 125 °C [ -67 – 257 °F ]
- Operating Temperature (Max) :125 °C [ 257 °F
