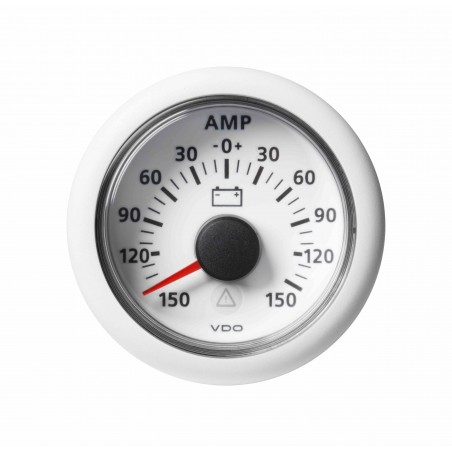

• White - Bezel white round
• Panel hole diameter: 52 mm - 2 1/16"
• Range: -150A to +150A DC
• Input signal: -60 to +60 mV
• Lens: Dual - Anti-Fog
• Exchangeable clip-on bezels

Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
Installation depth: 50 mm
Locking height with Spinlock nut: 0.5 mm - 20 mm
Locking height with bracket: 2 mm - 15 mm (Optional)
Flushmount: Optional kit A2C59510864

Ampere measurement range: -150A to +150A DC
Shunt: Not included
Signal input ammeter: Veratron Shunt 0 to 60 mV DC
Accuracy: < 2.5 % of the full scale reading

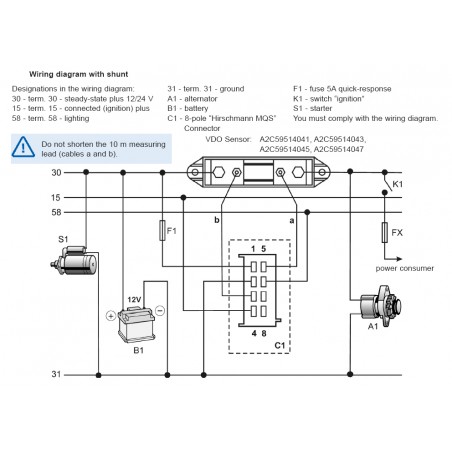

Connection: Hirschmann 8 pins MQS connector

Operating voltage: 8 to 32 Volt DC
Current consumption: < 140 mA including warning LED
Reverse polarity protection: Yes - 5 Minutes
Short circuit protection: Yes - 1 Minute

Deflection angle: 240°
Dial colour: White
Dial Illumination: Amber LED backlight 605nm
Pointer: Red LED backlight
Warning LED: Red (632nm)

Front protection class: IP67 (IEC 60529)
Rear protection class: IP52
Relative humidity: Maximum 95%
Operating temperature: -30°C to +80°C (Plastic bezel)
CE standard: Yes
DNV GL Certification: Yes
Mechanical shock continuous: 25G - 6ms - 1Hz
Mechanical single shock: 100G - 11ms
Free fall test: 1 Meter - 3x
Housing flame retarding: UL94-VD
