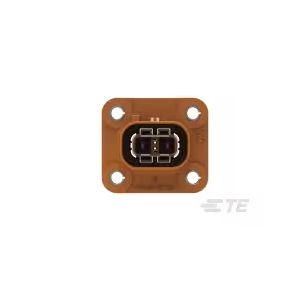

HVA 280 - 1-2103396-5 - High voltage PCB mount header
HVA280 2P HDR ASSY, STITCHED, AG, KEY E
HIGH voltage connector
- Connector System : Draad naar apparaat
- PCB Mount Orientation : Vertical
- Primary Product Color : Orange
- Mating Tab Width : 2.8 mm [ .11 in ]
- Headertype : volledig gehuld
- Montagetype PCB-connector : PCB-montagekop
- Connectorvorm : Rechthoekig
- Connectorsysteem : Draad-naar-apparaat
- Verzegelbaar : Ja
- Connector en contact eindigen op : printplaat
- Hybride koptekst : Nee
,
,
,
,
,
,
,
,
,
,
,
Configuratiefuncties
- Oriëntatie PCB-montage : Verticaal
- Elektrische kenmerken
- Bedrijfsspanning (VDC): 750
- Nominale spanningsarchitectuur (V): 750
- Voltage Rating (Max) (VDC): 750
,
,
,
,
,
Kenmerken
Primaire productkleur : oranje
Connector- en toegangscode : E
Contactfuncties
Contacttype : Tab
Breedte koppeling : 2,8 mm [ .11 in ]
Dikte koppeling : .8 mm [ .031 in ]
Contact-paringsgebied Beplating Materiaal : Zilver
Mechanische bevestiging
PCB Mount Retentie : Zonder
Paneelmontage Kenmerk : Zonder
Uitlijning PCB-montage : zonder
Paring Uitlijning : Met
Montagegaten : Zonder
Dimensies
Connectorbreedte : 40,6 mm [ 1,59 in ]
Connectorlengte : 45,4 mm [ 1,78 in ]
Gebruiksvoorwaarden
Bedrijfstemperatuur (max.) (°C): 65, 70, 75, 80, 85, 90, 100, 105, 110, 120, 125, 130, 140
Bedrijfstemperatuur (max.) (°F): 149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257, 266, 284
Bedrijfstemperatuurbereik : -40 – 140 °C [ -40 – 284 °F ]
Bediening/Toepassing
Afgeschermd : Ja
Circuittoepassing : Signaal
Industriestandaarden
UL ontvlambaarheidsclassificatie : Geen
Beschermingsgraad : IP67
