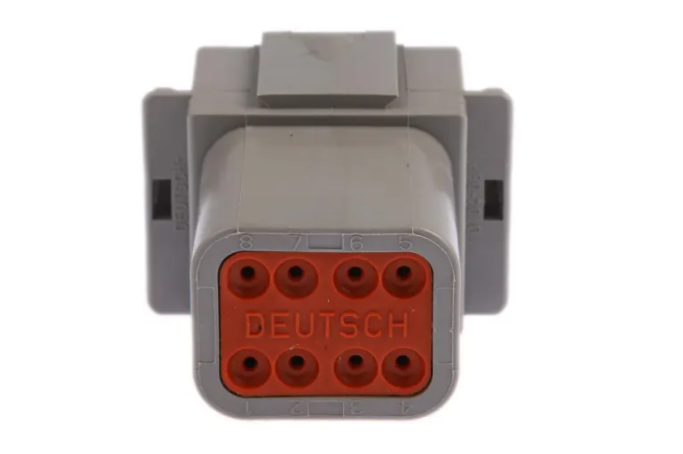

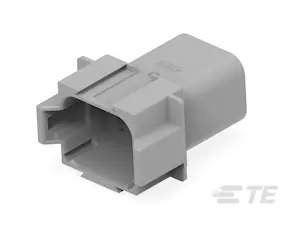

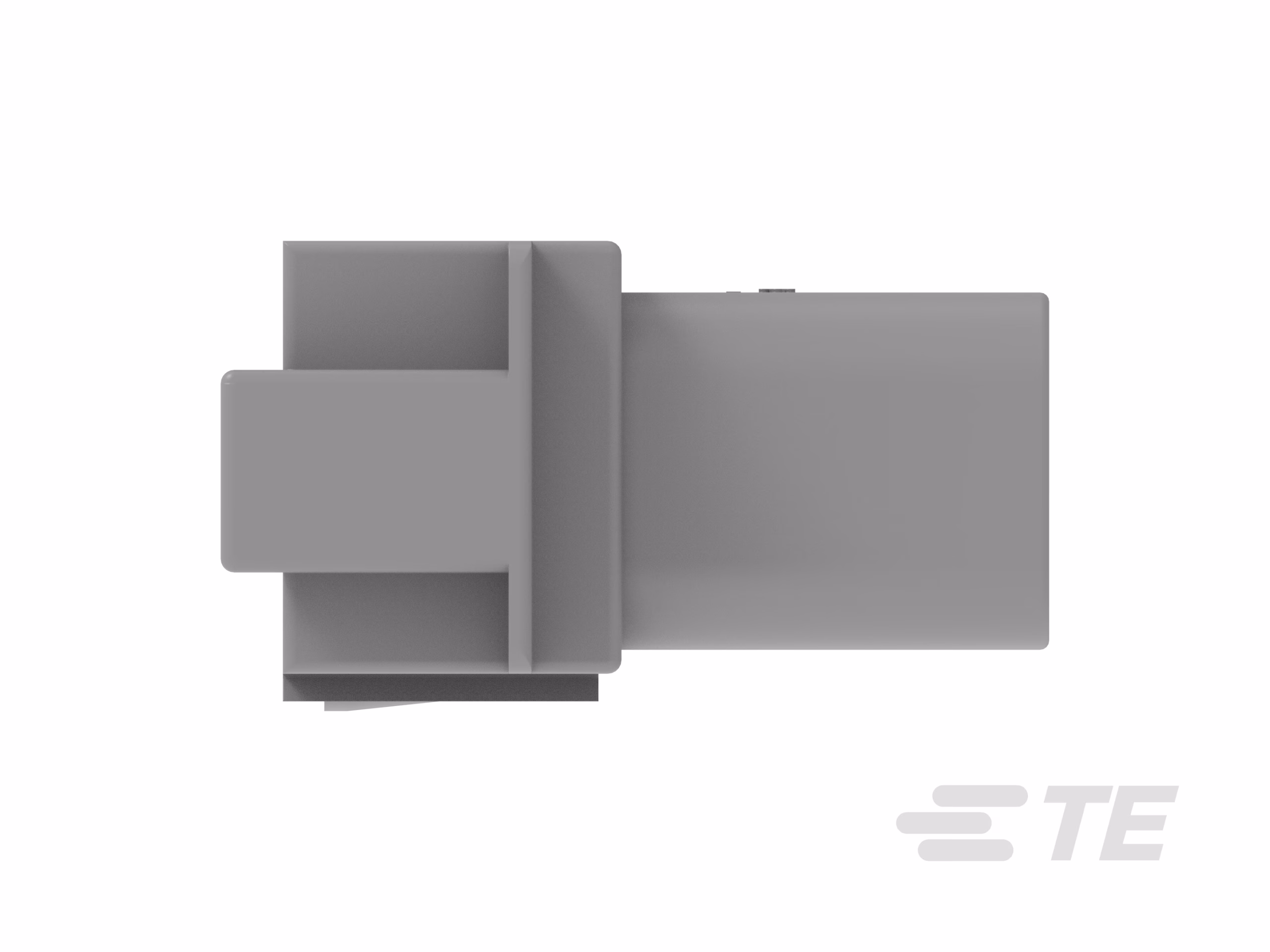

DT04-08PA

• Connector & Housing Type : Housing for Male Terminals
• Mating Pin Diameter : 1.59 mm [ .063 in ]
• Connector System : Wire-to-Wire
• Number of Positions : 8
• Centerline (Pitch) : 9.12 mm [ .359 in ]
• Operating Voltage (VDC):250
• Operating Voltage (VAC):250
• Nominal Voltage Architecture (V):12 | 24 | 4
• Cable Exit Angle (°):180
• Primary Product Color :Gra
• Connector Height :23.88 mm [ .94 in ]
• Product Length :45.67 mm [ 1.798 in ]
• Product Width :36.45 mm [ 1.435 in ]
• Compatible Insulation Diameter Range :2.23 – 3.68 mm [ .088 – .145 in ]
• Row-to-Row Spacing :4.45 mm [ .175 in ]
• Operating Temperature Range :-55 – 125 °C [ -67 – 257 °F ]
• Compatible With Agency/Standards Products :SAE J2030
• IP Rating :IP68 | IP6K9KOperating Temperature (Max) :125 °C [ 257 °F ]
• UL Flammability Rating :12mm Flame Test per Standard UL-94
• Connector Shape :Rectangular
• Mixed & Hybrid Connector :No
• Connector & Housing Type :Housing for Male Terminals
• Sealable :Yes
• Primary Locking Feature :Integrated in Housin
• DT04-08PA
