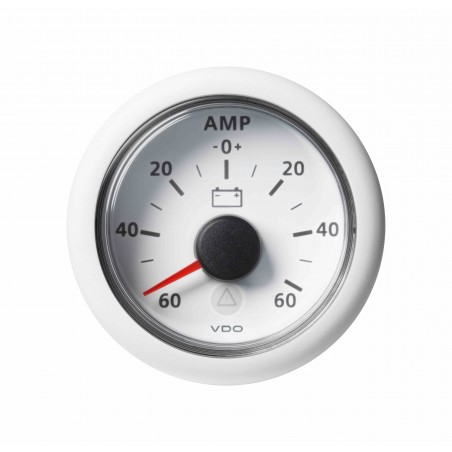

• White - Bezel white round
• Panel hole diameter: 52 mm - 2 1/16"
• Range: -60A to +60A DC
• Input signal: -60 to +60 mV
• Lens: Dual - Anti-Fog
• Exchangeable clip-on bezels

Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch
Installation depth: 50 mm
Locking height with Spinlock nut: 0.5 mm - 20 mm
Locking height with bracket: 2 mm - 15 mm (Optional)
Flushmount: Optional kit A2C59510864

Ampere measurement range: -60A to +60A DC
Shunt: Not included
Signal input ammeter: Veratron Shunt 0 to 60 mV DC
Accuracy: < 2.5 % of the full scale reading
Connection: Hirschmann 8 pins MQS connector

Operating voltage: 8 to 32 Volt DC
Current consumption: < 140 mA including warning LED
Reverse polarity protection: Yes - 5 Minutes
Short circuit protection: Yes - 1 Minute

Deflection angle: 240°
Dial colour: White
Dial Illumination: Amber LED backlight 605nm
Pointer: Red LED backlight
Warning LED: Red (632nm)
