Connector & Housing Type : Housing for Male Terminals

TE Internal Description: REC, 8P, BLK, E, XCAP, A

Nominal Voltage Architecture (V): 12 | 24 | 48

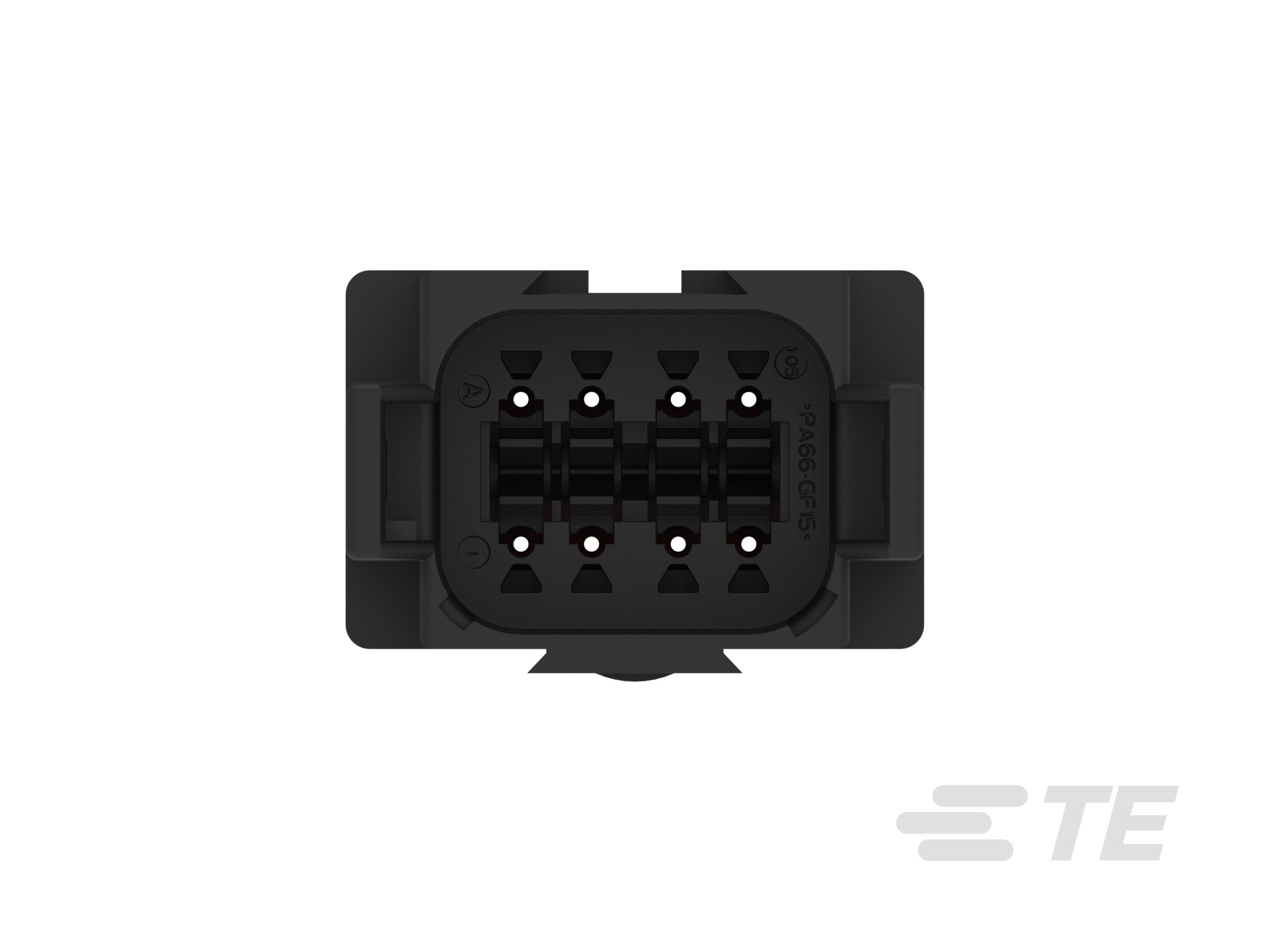

DT04-08PA-CE09 - DT Serie - connector 8 posities

Name: DT04-08PA-CE09 - DT Serie - connector 8 posities
SKU: DT04-08PA-CE09
Availability: OutOfStock

8 Position Housing, Housing for Male Terminals, Wire-to-Wire, Sealable, Black, Wire & Cable, Power, Cable Mount (Free-Hanging), DEUTSCH DT

Mecs nummer: DT04-8PA-CE09

Artikelnummer: DT04-08PA-CE09 Categorieën: Alle producten, Connectoren, DEUTSCH Connectoren, DT Series Tags: 8P, A, BLK, E, REC, XCAP

HS-code: 85472000

Land van oorsprong: US - United States

DT04-08PA-CE09

Number of Positions : 8
Connector & Housing Type : Housing for Male Terminals
Mating Pin Diameter : 1.6 mm [ .062 in ]
Connector System : Wire-to-Wire
Sealable : Yes
Primary Locking Feature :Integrated in Housing
Connector Seal Code :E Seal | N Seal
Connector Modification :Shrink Boot Adapter
Blank Cavity Position :0
Number of Positions :8
Number of Rows : 2

DT04-08PA-CE09

Extra informatie

Cavities	8
Contact size	16
Housing for	Male
Connector & Keying Code	A

Verwacht op:

Fabriekslevertijd: Circa *

* onder voorbehoud - de geschatte productietijd in de fabriek voor meer dan de weergegeven hoeveelheden.

€3,84 excl. BTW

Aantal	Prijs
1 - 9	€3,84
10 - 49	€3,06
50 - 99	€2,97
100 - 499	€2,81
500 - 1.499	€2,67
1.500+	€2,57

Niet op voorraad

*Deze prijs geldt zolang de voorraad strekt, wanneer deze voorraad op is dan geldt er mogelijk een hogere prijs.

Alle prijzen zijn excl. BTW

Geen voorraad? [email protected]

Toevoegen productaanvraag
